    Brand :CTCW

    Product origin :Shanghai, China

    Delivery time :Quantity(Meters) 1 - 20000 20001 - 50000 >50000 Est. Time(days) 5 10 To be negotiated

    Supply capacity :2000000 meters per day

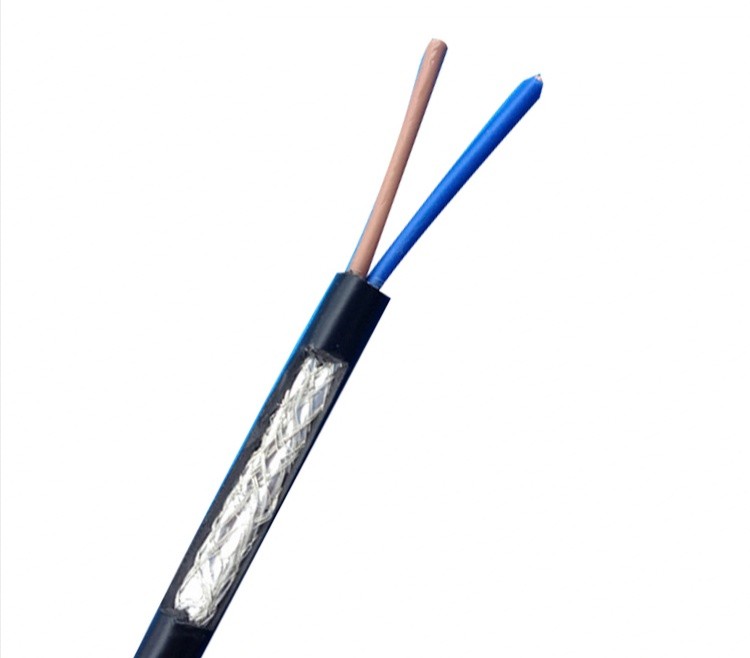

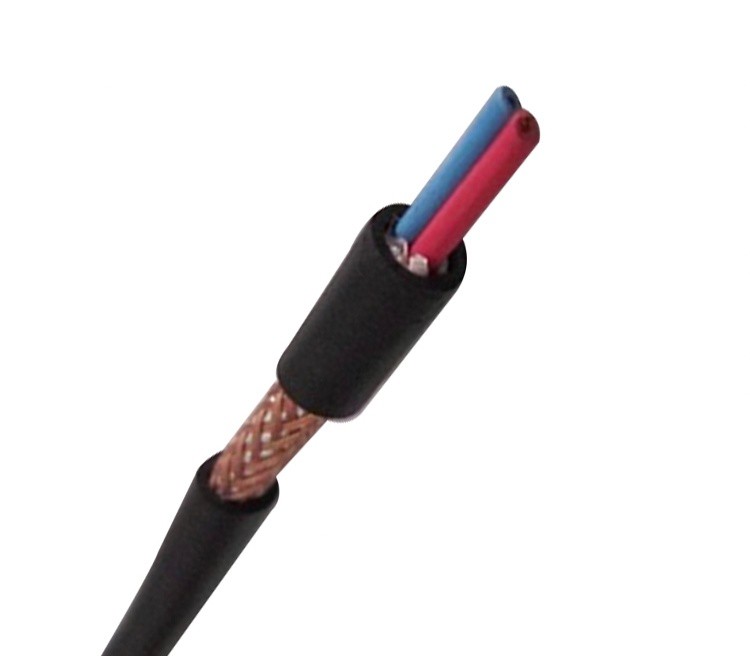

    PVC shielded wire is a shielded winding wire that can be used for electrical machines and wiring inside electronic machines.
    A Shielding line is a transmission line that wraps a signal line with a metal mesh braid. The braid is typically copper or tinned copper. The shielding layer of the shielded wire needs to be grounded, and external interference signals can be introduced into the ground by this layer.

    INTRODUCTION

          shielded wire

    Description

  • Rated temperature:80℃

  • Rated voltage:300V

  • Reference standard:UL Subject758,UL1581

  • Uniform insulation thickness of wire to ensure easy stripping and cutting

  • Tinned or bare copper wire spiral shield

  • Passes UL VW-1 vertical burn test and comply with RoHS directive

  • Product parameters:

    UL1185

  • PVC insulation

  • Solid or stranded,tinned or bare copper conductor 30-4/0AWG

  • SURFACE MARKING: shielded hook up wireAWM E472053 STYLE 1185()AWG 80℃ 300V  VW-1 SHANG HAI CHAO TONG  LF

    UL1533

  • SR-PVC insulation

  • Solid or stranded,tinned or bare copper conductor 30-16AWG

  • SURFACE MARKING: shielded hook up wireAWM E472053 STYLE 1533()AWG 80℃ 300V  VW-1 SHANG HAI CHAO TONG  LF

    Noted:Core No. and specification are not limited to the above regulation,they could be customized.
